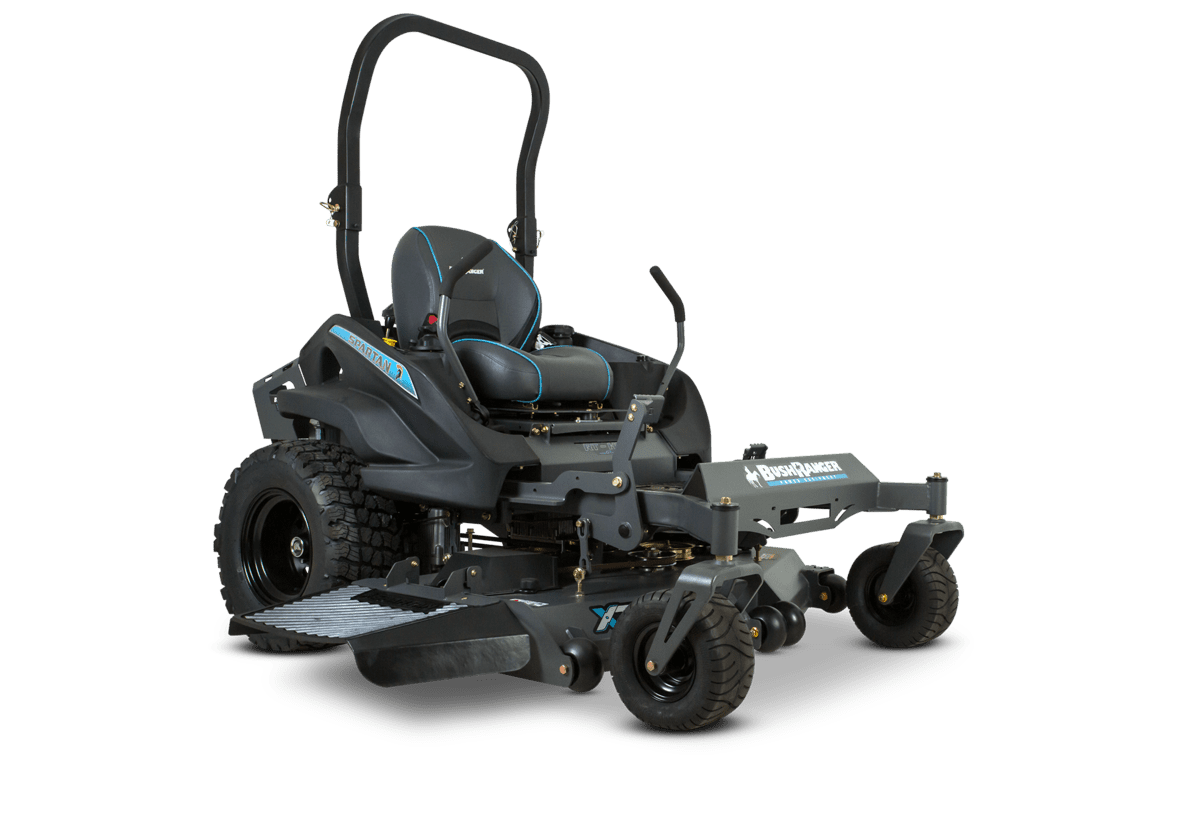

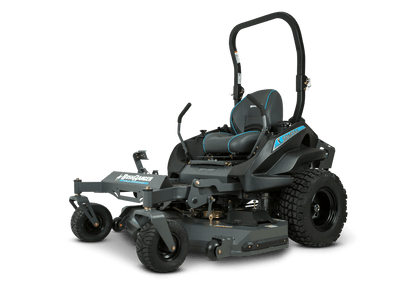

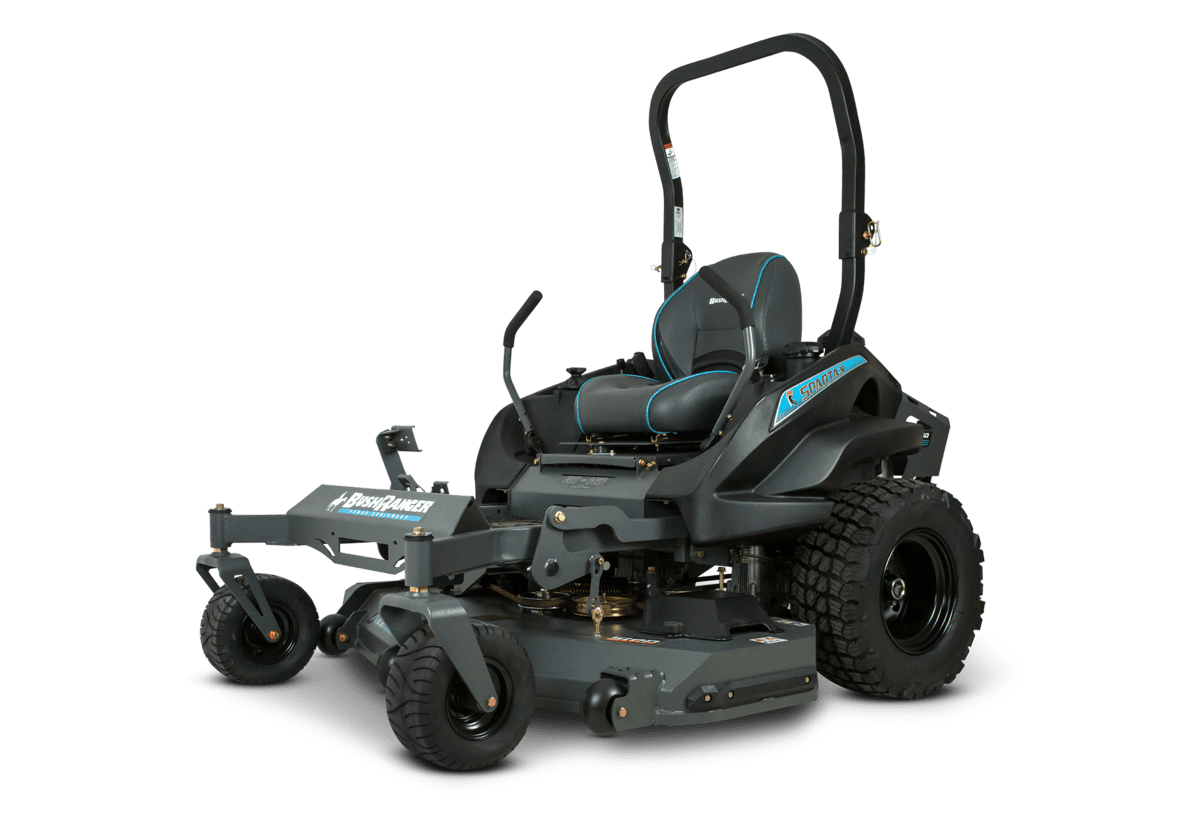

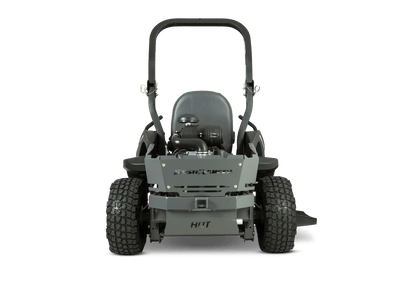

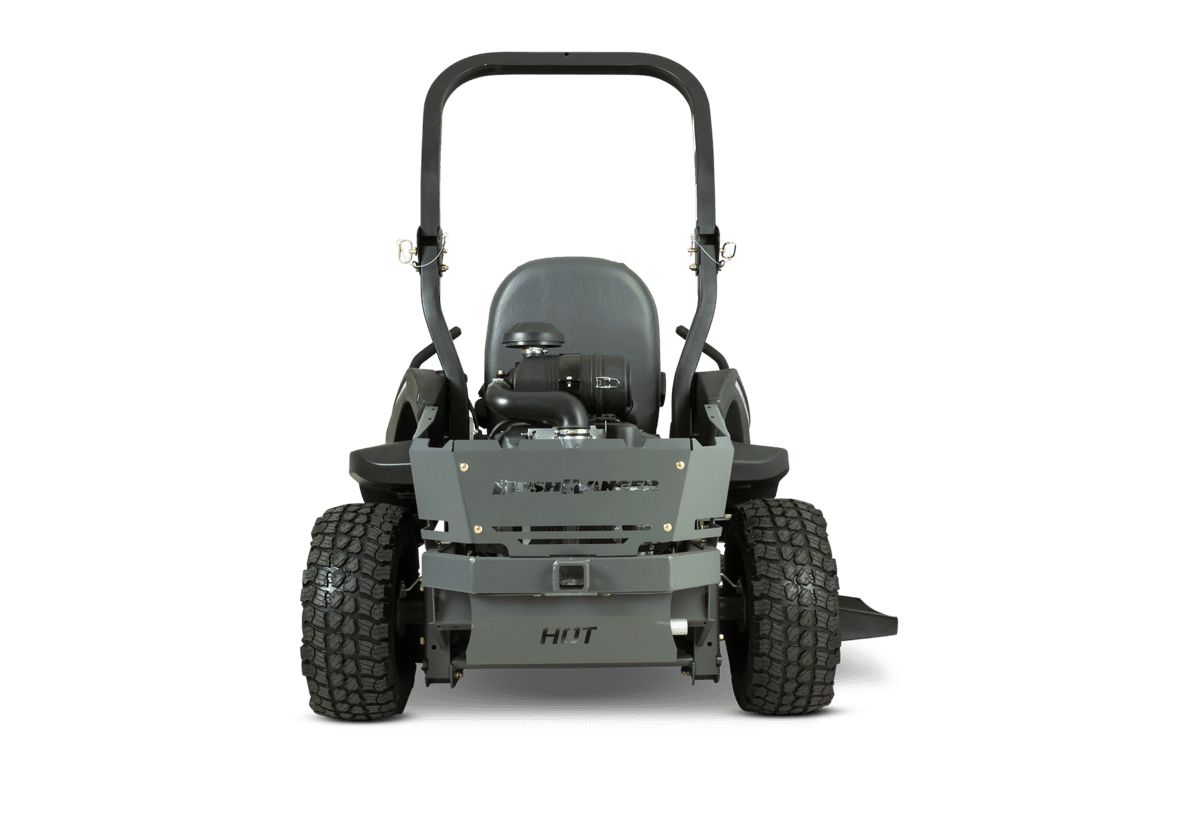

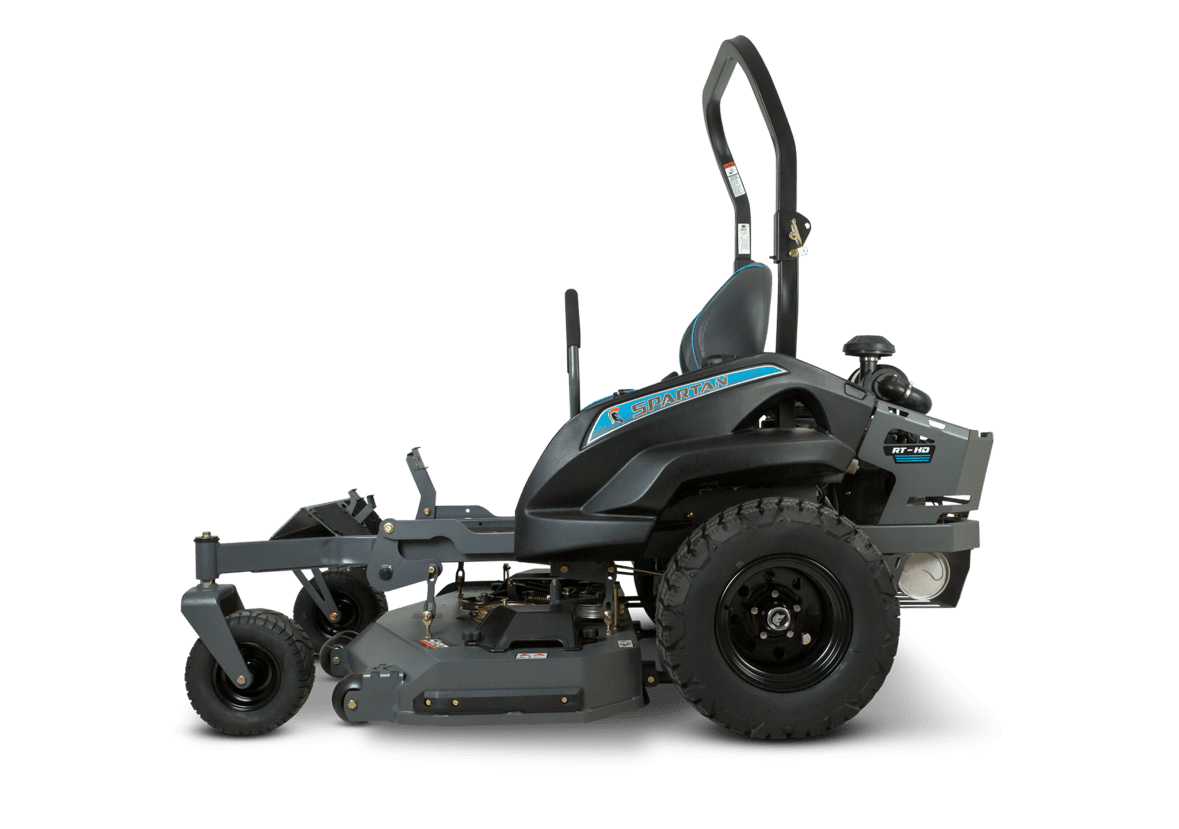

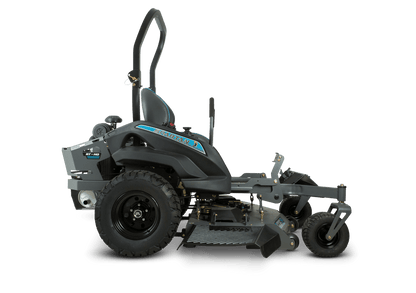

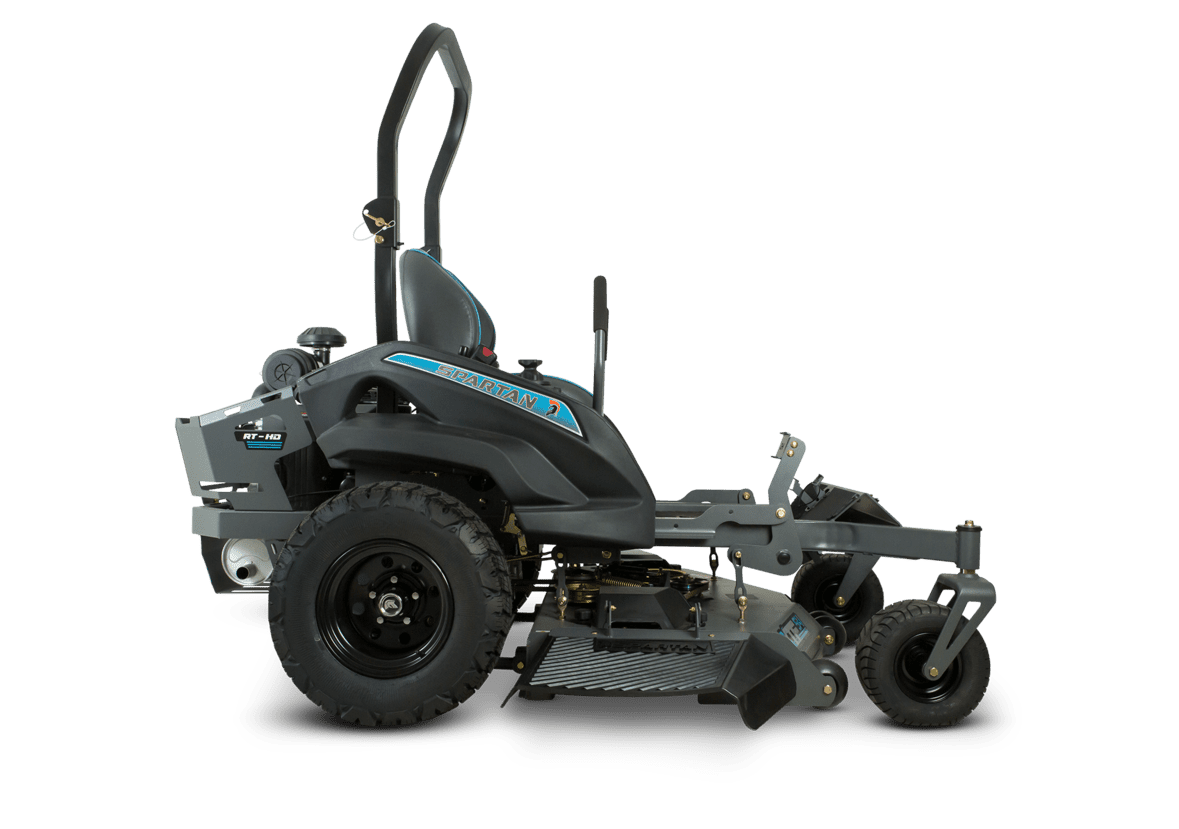

Bushranger Spartan RTHD 54in Zero Turn Mower
Bushranger Spartan RTHD 54in Zero Turn Mower
Regular price
$23,499.00
Regular price
Sale price
$23,499.00
Inc GST.
Not Stocked – Order In
Usually ready: 2–14 business days
Quantity
Couldn't load pickup availability
Bushranger Spartan RTHD 54" Zero Turn Mower
The Bushranger Spartan RTHD 54" is a heavy-duty commercial zero-turn mower built to tackle properties of all sizes. Its 27 HP Kawasaki FX850V V-twin engine, Parker HTJ hydrostatic drive and 54" fabricated steel cutting deck deliver the power and control needed for demanding mowing jobs.
With a 35.9-litre fuel capacity and ground speeds up to 17.7 km/h, you can cover more ground between fuel stops. Settle into the TCB-3 TecsPak 360 floating seat system, keep your controls within easy reach and adjust the cutting height on the go with the shock-assisted foot lift. GT-Trac traction technology, a reinforced deck and practical onboard storage round out a mower designed for long working days.
Features
- Kawasaki FX850V V-twin engine producing 27 HP (20.1 kW).
- Engine guard.
- Parker HTJ 12 cc wheel motors.
- Ground speed up to 17.7 km/h.
- 35.9-litre fuel capacity.
- 54" heavy-duty fabricated steel, 6" deep, reinforced 7-gauge XTF deck.
- On-the-go deck height dial with shock-assisted foot lift.
- Cast aluminium spindles with four sealed bearings per spindle.
- Long-life deck belts with large idler pulleys to minimise wear.
- Vibration control deck system and heavy-duty fabricated steel frame.
- Low centre of gravity and GT-Trac for traction, balance and control on inclines.
- Foot-operated parking brake.
- LCD control panel with engine hour meter, mower deck hour meter and tachometer.
- Push-start keypad and 12V outlet.
- Large cup holder, phone holder and deep storage tray.
- TCB-3 TecsPak Elastomer Dampeners with 360 Floating System.
- 24" turf radial drive tyres and 13" radial front caster tyres.
- Tow hitch.
Specifications
| Specification | Details |
|---|---|
| Domestic Warranty | 3 years / 500 hours, whichever comes first |
| Commercial Warranty | 2 years / unlimited hours |
| Hire / Rental Warranty | No hire / rental warranty |
| Dry Weight | 502.5 kg (1,107.8 lbs) |
| Height | 75" (1,905 mm) with ROPS up; 54" (1,372 mm) with folding ROPS down |
| Width | 55.5" (1,409.70 mm) with discharge chute raised |
| Length | 84" (2,133.6 mm) |
| Forward Ground Speed | Infinitely variable, 0–17.7 km/h |
| Brakes | Foot-operated parking brake |
| Caster Tyres | 13", radial |
| Drive Tyres | 24" turf radials |
| Seat | TCB-3 TecsPak Elastomer Dampeners with 360 Floating System |
| Construction | Fabricated 7-gauge with 7-gauge spindle mounts and 9/16" impact bar |
| Hour Meter | Standard |
| Controls | Hand-operated choke and throttle, push-button key, electric mower clutch and foot-pedal parking brake |
| Cup Holder | Large cup holder moulded into the right-side mudguard, accommodating nearly any cup size |
| Deck System | 54" (1,372 mm) side-discharge deck with three blades, four-point suspension and deck-mounted anti-scalp wheel(s) for improved flotation on rolling and uneven terrain |
| Deck Lift | Foot-operated with shock assist |
| Deck Construction | 6" deep, reinforced 7-gauge fabricated steel with 7-gauge spindle mounts and 9/16" impact bar |
| Blade Tip Speed | 18,684 ft/min / 5,694.88 m/min |
| Blade Drive | V-belt with electric clutch and spring-tension idlers |
| Spindles | Cast aluminium with four sealed bearings per spindle |
| Blades | Three heavy-duty blades |
| Engine | Kawasaki FX850V |
| Engine Type | Air-cooled, 90-degree V-twin, normally aspirated petrol engine |
| Horsepower | 27 HP (20.1 kW) at 3,600 rpm, tested to SAE J1995 standards |
| Power Output | 12-volt, subject to engine manufacturer specifications |
| Cooling | Air-cooled with flywheel fan |
| Fuel | Unleaded petrol with a maximum of 10% ethanol, subject to engine manufacturer specifications |
| Fuel Filter | Replaceable, automotive-type |
| Oil Filter | Spin-on engine oil filter |
| Total Oil Capacity | 2.5 US quarts (2.4 litres), including filter |
| Air Filter | Heavy-duty, canister-style air cleaner for extended service intervals in dirty conditions and improved performance |
| Fuel Capacity | 35.9 litres |
| Governor | Mechanical |
| Hydrostatic Drive System | Parker HTJ 12 cc wheel motors |
| Cutting Width | 54" (1,372 mm) side discharge |
| Cutting Height | 1.5"–5.5" (38.1–139.7 mm), with 15 adjustable cut heights in between and travel lock |
| Cutting Height Adjustment | On-the-go deck height dial with shock-assisted foot-operated deck lift |
